機器視覺

機器視覺的應用伴隨著工業 4.0、AI 而崛起，取代傳統的肉眼辨識，透過自動化的視覺系統來進行產品的瑕疵檢測、尺寸量測、計數、識別等等多項視覺功能及需求。

用以減少人工造成的失誤、檢測肉眼無法辨識的產品缺陷，全面提高生產線效率、出貨質量、且減少人力成本。

此時，專用的工業視覺相機也應運而生，聯穎為這些高精度、高解析度的相機提供系列連接線纜，搭配我們優秀的連接方案，讓相機發揮出應有的水準。

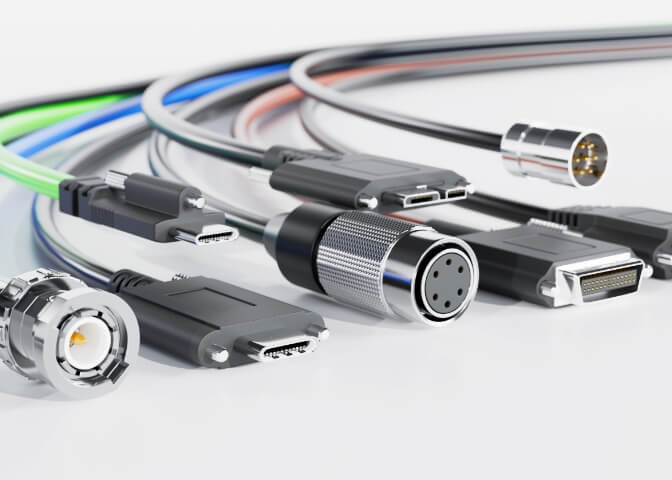

機器視覺系列產品：

Camera Link
FireWire IEEE 1394b
USB3
GigE
CoaXPress
I/O 觸發線

我們根據不同的使用需求，提供專屬的設計。

特色：

滿足最新的環保要求，如：ROHS、Reach、CA65等
可選用無鹵材料
耐搖擺、耐拖鏈、耐繞曲等滿足特殊機械要求的柔性電纜
根據客人使用環境，提出對應解決方案，如坦克鏈線材安裝建議等等
為突破銅纜極限，部份線種提供 AOC 版本

歡迎參閱我司機器視覺產品Brochure

相關產品

首頁
核心能力
應用範疇
機器視覺

Standard & Power Over Camera Link Cables

Cables for Camera Link Vision Cameras

26 Pos MDR to 26 Pos MDR
26 Pos MDR to 26 Pos SDR
26 Pos SDR to 26 Pos SDR
Cable :
Static Standard CL / PoCL cables
Dynamic Standard CL / PoCL cables

ROHS / REACH
Integrated test equipment : TDR, Eye pattern, BER, Flex Test
Robust High Flex cable
Designed to surpass 1 - 5 million flex test
Maximum length : 15 meters
Capability of upgrading to CLHS version
10 meter Copartner CameraLink is suitable for base, medium, and full configuration applications at a line rate of up to 85 MHz
Right angle cable series help customers setting up a system with limited space
AOC version is optional
Bulk cable can be sold seperately

USB3 Camera Cables

Cables for USB3 Vision Cameras

USB3.0 A to USB3.0 Micro B screw lock
USB3.0 A to USB3.0 Type C screw lock
Cable :
Static　USB3.0 / USB3.1 cables
Dynamic　USB3.0 / USB3.1 cables

Standard cables for USB3 Vision cameras and USB 3.0 interface boards
Maximum Length: 8 meter
Designed to surpass 8 million flex test without frame loss
Right angle cable series help customers setting up a system with limited space.
Capability of upgrading to USB3.1 Gen2 x 1
AOC version is optional.
Bulk cable can be sold seperately.

Gigabit Ethernrt Camera Cables

Cables for GigE Vision Cameras

RJ45 TO RJ45 screw lock
Industrial Ethernet M12 TO RJ45 screw lock
Cable :
Static CAT 5e / CAT 6 / CAT6a cables
Dynamic CAT 5e / CAT 6 / CAT6a cables

Maximum Length: 100 meter
Support transmission of gigabit and gigabit high-speed cameras.
Designed to surpass 20 million flex test.
Right angle cable series provides a solution for applications where limited space exists behind the camera.
AOC version is optional
Bulk cable can be sold seperately

Firewire IEEE 1394 Camera Cables

Cables for Firewire Cameras

1394b 9Pin screw lock TO 1394a 6Pin screw lock
1394b 9Pin screw lock TO 1394b 9Pin screw lock
Cable :
2Pairs + 2 Cores TPU IEEE 1394

Length: 5 & 10 meter
Comply with IEEE 1394 standard.
Designed to surpass 5 million flex test.
Right angle cable series provides a solution for applications where limited space exists behind the camera.
Bulk cable can be sold seperately

CoaxPress & CoaxPress2.0 Camera Cables

Cables for CoaxPress Cameras

DIN1.0/2.3 TO BNC or HDBNC
Cable :
23AWG OD:4.1MM 75Ω (STANDARD)
24AWG OD:4.5MM 75Ω (10Million HIGH-Flex)

High-speed data transmission :
Up to 6.25Gbps (using one coaxial cable)
Up to 12.5Gbps (using one CoaxPress 2.0 coaxial cable) Up to 25Gbps (using four cables)
Extended cable length: Up to 30 meters.
Flexible cable solution for transmitting video, data, control signals, and power using a single coaxial cable.
Support Hot plugging.
The right-angle cable series offers a solution for applications with limited space behind the camera.

Power I / O Camera Cables

Plug :
HRS 6 / 8 / 10 / 12 / 15 / 27P
Cable :
Multi-conductor UL rated cables (Standard / High Flex)

Using tinned copper conductors and double-layer shielding, which are not easy to oxidize, resulting in a longer service life. The conductors are tinned at the end, making them easy to install;
A wide range of connector types and cable sizes are available;
Choose between standard and drag chain cables based on the operating environment. The drag chain cable has passed a drag chain test more than 5 million times;
It can be used with a power adapter, depending on its usage;
The cable meets UL specifications and has a flame retardant rating of VW-1;
Compliant with RoHS 2.0 and CE standards;
